Tractor Trailed Sprayer & Air Assisted Sprayer

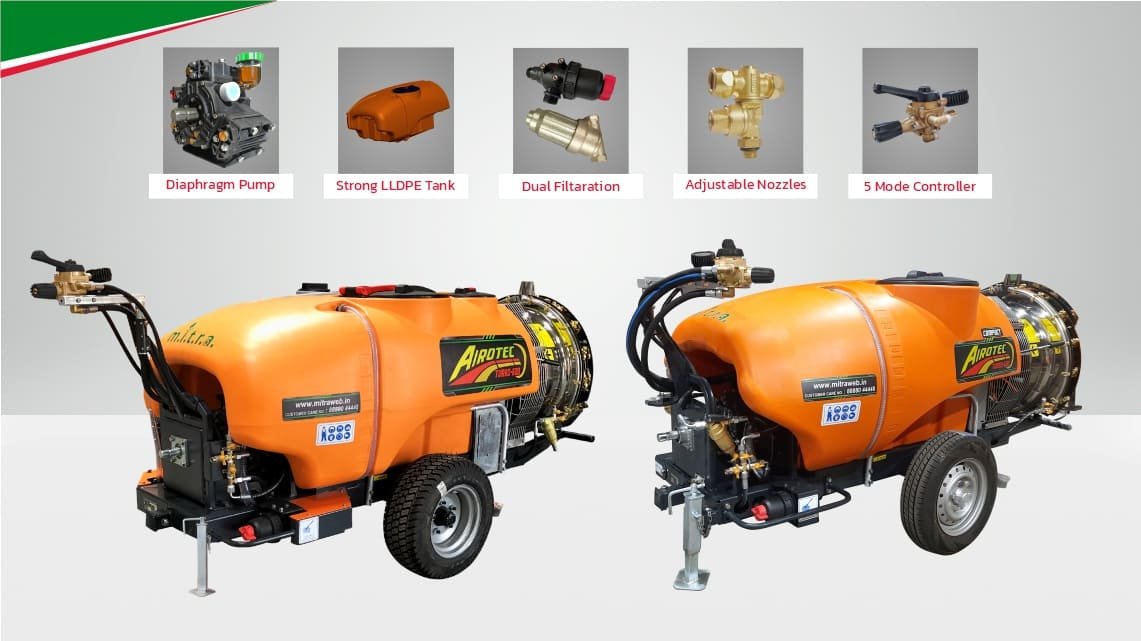

Mitra Agro Equipment is one of India's leading tractor trailed sprayer manufacturers, specializing in high-performance solutions for horticulture farming. These sprayers are designed for a variety of crops, including grapes, pomegranates, oranges, mangoes, guava, and custard apples. The air assisted sprayer models by Mitra come equipped with an advanced rear air conveyor system, which ensures optimal air balancing with maximum air output and low power consumption. The conveyor system features stainless steel components, including a shell, fins, backplate, bottom baffle, and deflectors, all engineered for durability and efficient spraying performance. Read More

The tractor trailed sprayer by Mitra is available in 600-liter and 800-liter tank capacities, perfect for farmers with tractors around 24-27 HP. These sprayers are equipped with a water tube level indicator and a high-pressure jet inside the main tank, which ensures uniform chemical mixing for consistent concentration throughout the spraying process. The design also includes a basket mixer to facilitate chemical preparation.

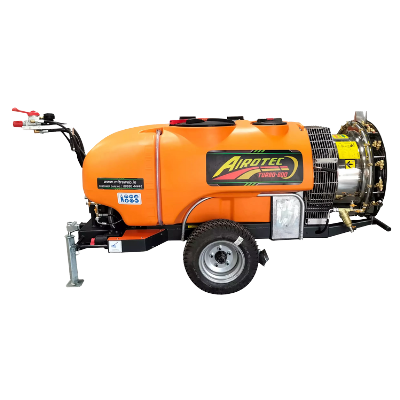

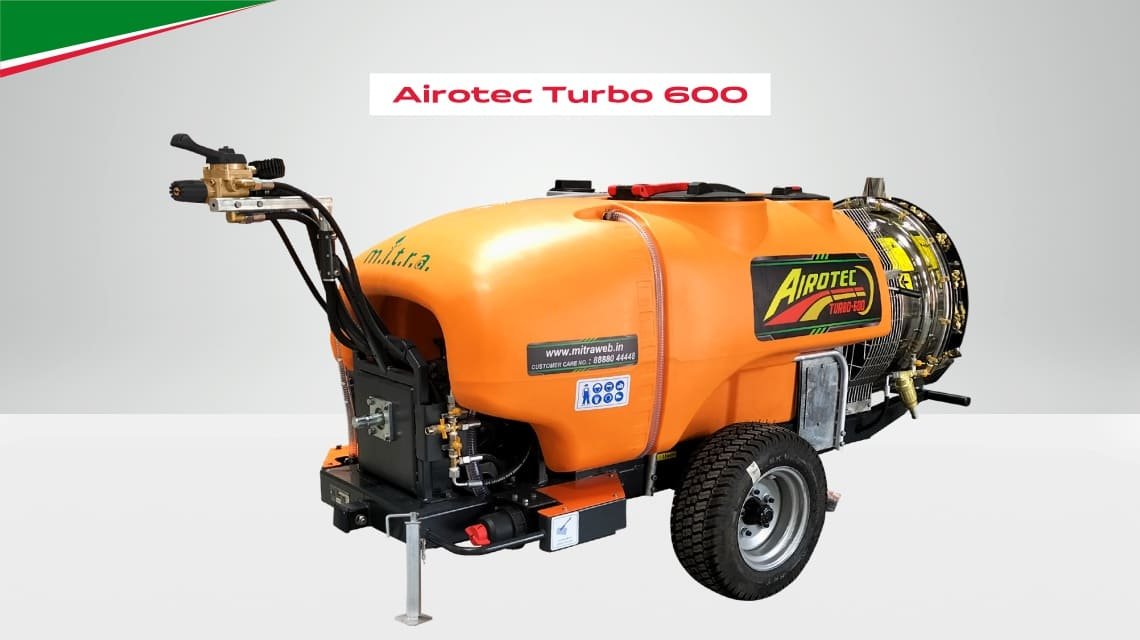

One of the standout features of this air assisted sprayer is the 3-axis toe bar mechanism, allowing for the lowest turning radius, ideal for navigating through low-spacing vineyards. Additionally, the adjustable 3-way wheel axle lets users modify the track width, height, and tire orientation, providing versatility for different farm conditions. Mitra's tractor trailed sprayer models, including the Airotec Turbo, are more compact than other imported sprayers, making them convenient for smaller farms and tighter spaces.

Mitra's Safety and precision are top priorities in Mitra's air assisted sprayer designs. The sprayers feature high-quality Italian brass nozzles for accurate chemical delivery, while dual filtration systems (a suction filter as the primary and a brass line filter as the secondary) ensure clean, effective spraying. The sprayers are also equipped with a rubber coupling to minimize vibrations and protect the pump from excessive pressure using a pressure relief valve that opens at 40 bar.

Power for the tractor trailed sprayer is transmitted from the tractor’s PTO shaft through a wide-angle PTO shaft, driving a diaphragm pump connected to a 2-speed gearbox with 1:4 and 1:5 gear ratios. The chassis and other critical components, such as the scrapper, side guards, and rear bumper, are hot-dip galvanized, ensuring long-term durability and resistance to rust. With Mitra's air assisted sprayer solutions, farmers can expect high performance, precision, and reliability for their horticultural needs. Hide Me
