Agriculture Sprayer Machine

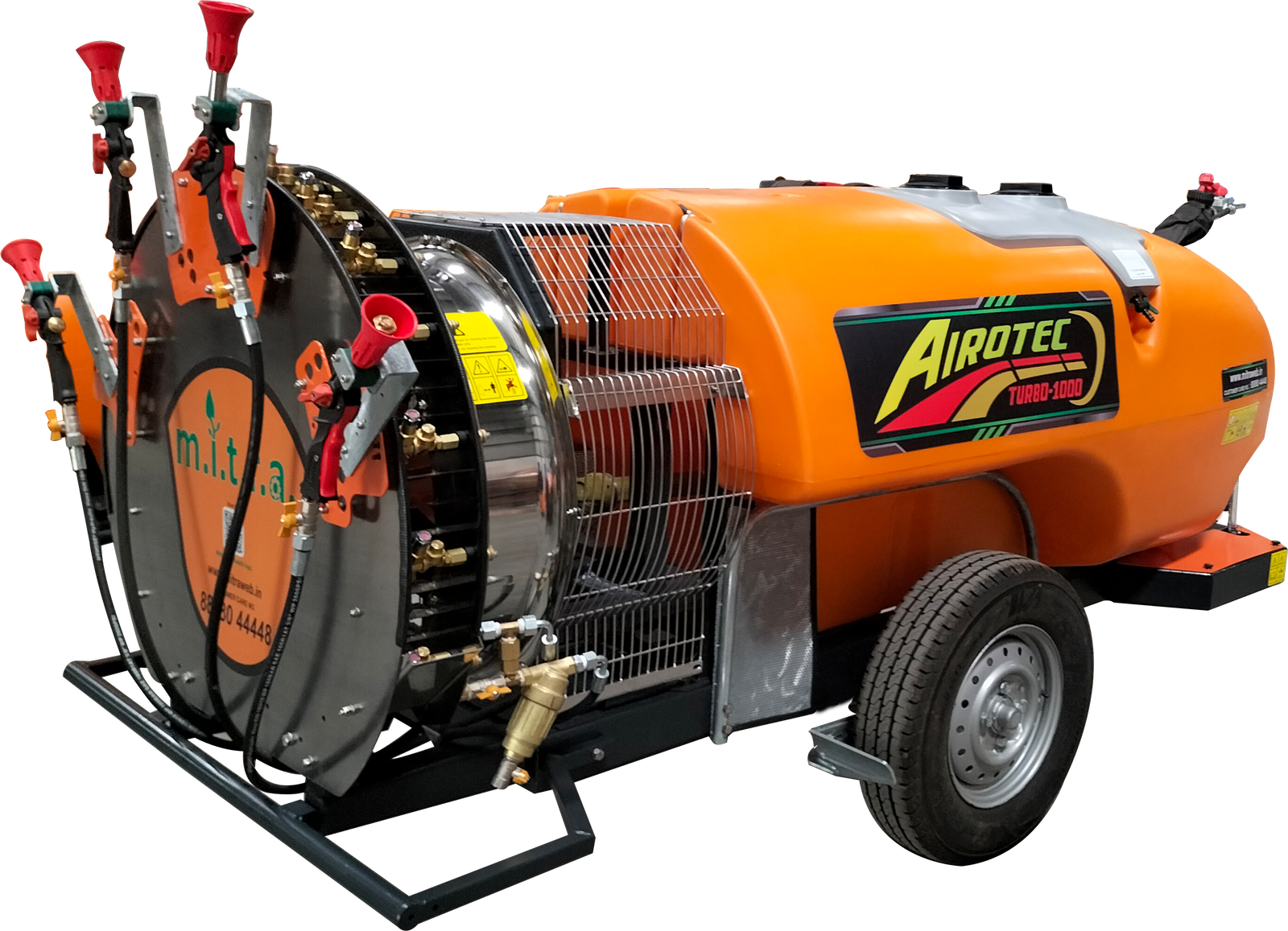

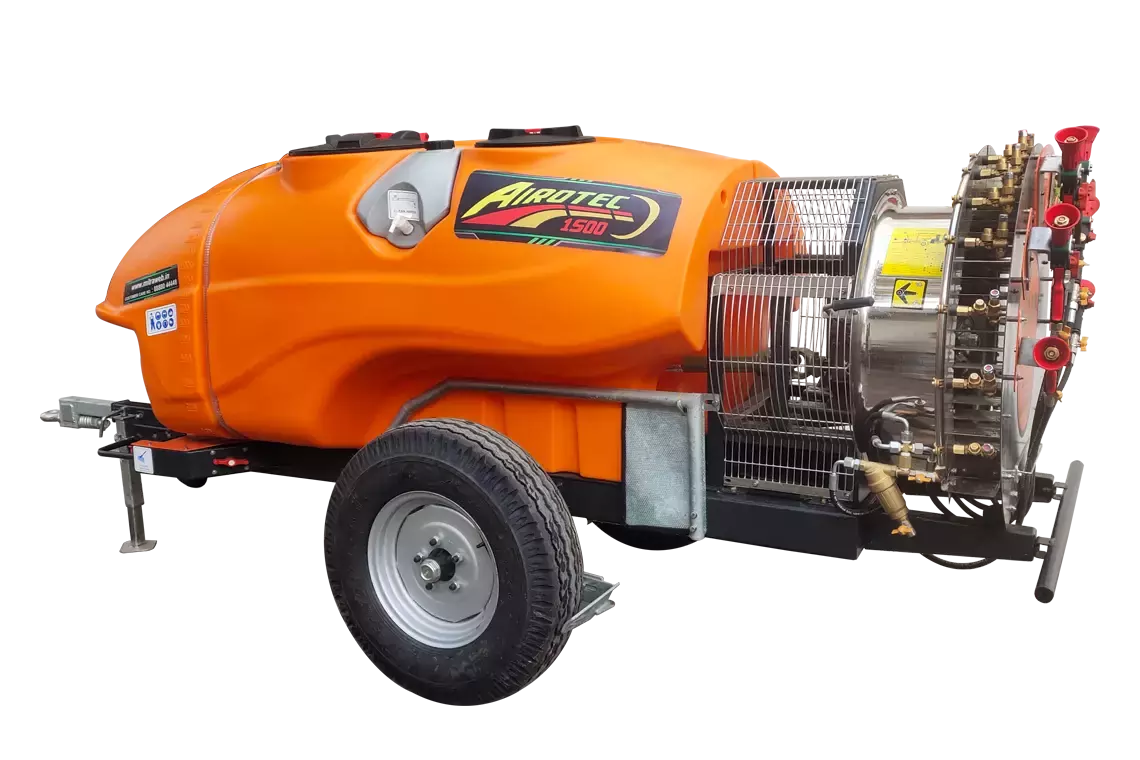

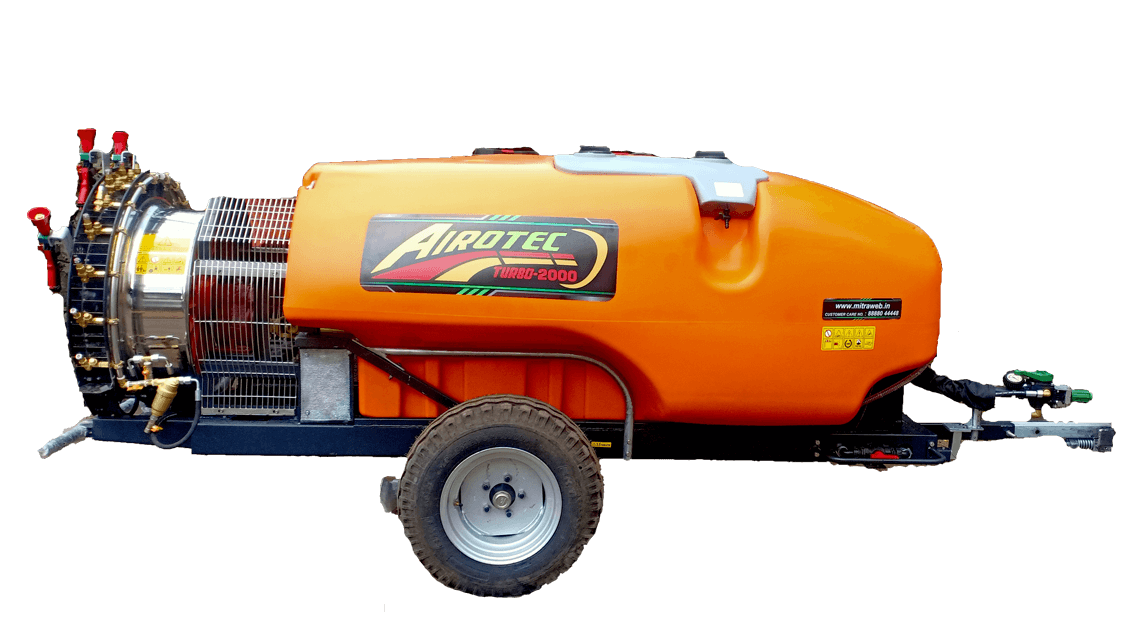

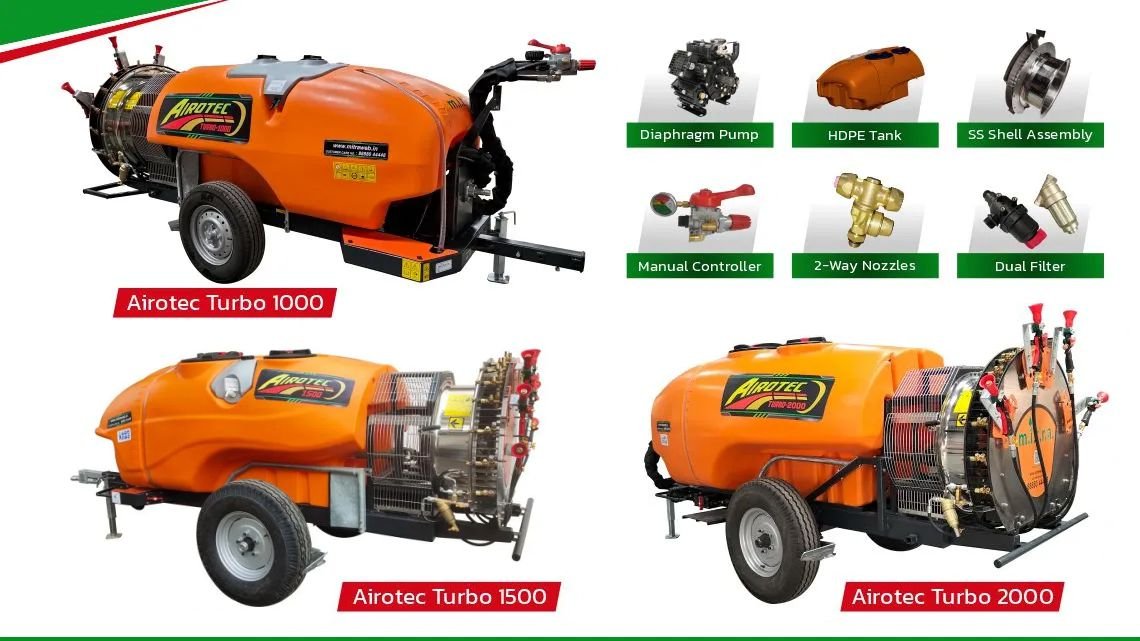

Mitra Agro Equipments is one of the best agriculture sprayer machine Manufacturer in India, which is used for all types of crops in horticulture farming, such as Grapes, Pomegranates, Oranges, Mangoes, Guava, and Custard Apples. Mitra agriculture sprayer machine come with a rear air conveyor system, which produces perfect air balancing with the highest air output and low power consumption. It is an air conveyor system used with stainless steel material which consists of a shell, fins, backplate, bottom baffle, and deflectors. Mitra's Tractor Sprayer is provided with a compact tank having 10 mm wall thickness. The tank is made up of 3 compartments that include main tank, rinsing tank, and clean water tank with a dual water tube level indicator. It has a different capacities like 1000L, 1500L and 2000L, farmer can use this models as per suitability of tractor HP, Crop spacing and Water requirement etc.Read More

This Tractor Trailed Sprayer has an attached high-pressure jet inside the main tank for uniform chemical mixing, thus providing equal chemical concentration throughout the spraying and basket mixture for preparing the chemical. This model uses a 3-way adjustable wheel axle, which can be used for adjusting the Track Width, Height, Tyre Reverse, and Forward. agriculture sprayer machine has a compact dimension compared to other imported sprayers. The most important benefit of this tractor operated sprayer is that it's equipped with a manually operated controller, giving the accurate delivery of chemicals while spraying.

Spraying solutions are filtered with the help of a Suction filter (Primary) and Brass line filter (Secondary) and can finally pass through the high-quality Italian brass nozzles. Mitra Agro Equipment has taken care of safety by providing safety devices like Chain Coupling or Rubber coupling (As per tractor HP), which reduces the vibration and jerk coming from the tractor. The pressure relief valve automatically opens at 40 bar pressure to protect the pump from any damage due to excessive pressure. The rear bumper protects the shell assembly from damages. Mitra's Tractor Blower works on the tractor PTO power, transmitted by a wide-angle PTO shaft to the machine. This shaft is connected between the diaphragm pump to the tractor PTO shaft as the power gets transferred to a 2-speed gearbox, i.e., low-high and neutral, with 1:4 and 1:5 gear ratios. Hot-dip galvanized chassis for long life and prevention from rusting, and similarly, scrapper, side guards, bottom plate, and rear bumper are processed by a hot-dip galvanizing process. Hide Me
